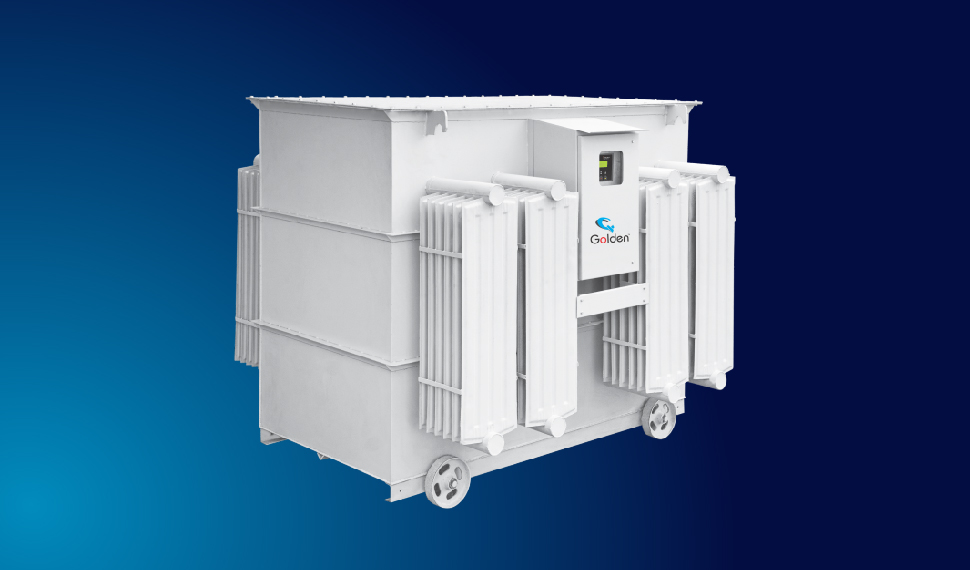

- High efficiency & Fast response.
- Wide input voltage range & Audiable alarm for trip conditions.
- 99.99% failure proof control circuit.
- No over under, shoots and hunting.
- Built in bypass switch upto 100 Kva.
- Less active component avoids failure ratings.
- Special electronic circuit to operate on gensets.
- No effect of power factor and frequency variations.
- Single PCB for three phase sensing and correction.
- Voltage at speed related to rate of fluctuations and avoids oscillations & hunting in DC motor drive.
- Variable speed high torque dc servo motor proportionally controls corrections.
- Rugged and smooth ac motor drive control through optoisolator circuit which is Highly reliable.
- Separate isolated PCB for triac switching for motor.
Call Us Today
Mobile: 9880881724/9035000876
Mail Us @
anand@perfecttechnologies.co.in
-
Salient Features
-
High Reliability
- Wide input voltage range & Audiable alarm for trip conditions.
- All components sourced from reputed manufacturers, confirm to IS/BS/VDU Standards
- All raw material inspection as per internal components manual
- Individual assemblies tested on full load at 55 deg C in oven for 48 hours to minimize failure
- Final equipment tested for accelerated life test to identify and replace any weak links.
-
Protections
- Input and Output Low Voltage protections.
- Input and Output High Voltage protections.
- Phase rotation/single phasing preventer.
- Input protection using HRC fuse.
- Control circuit protection using fast blow fuse.
- Electronic overload protection.
-
LCD Specification
- 16*4 lcd display is used for easy reading of parameters.
- True rms sensing and reading of voltage and current.
- 100 event error log facilities for easy diagnosation of fault level.
- Internal variable timer is adopted for on time delay and overload trip of scvs.
- Selectable phase reverse function.
- Selectable auto on function.
- Less analog circuit and hence failure rate is reduced.
- Built in digital meter for monitoring the voltage / current & frequency.
- Separate isolated PCB for triac switching for motor.
-
Product Specification
PARAMETERS SPECIFICATION Single phase capacity 1 to 25 kva Three phase (air cooled) 3 to 150 kva Three Phase (oil cooled) 3 to 2000 kva Input voltage range 170-270 Single phase 295-465 volts three phase 195-270 Single phase 340-465 volts three phase 205-270 Single phase 360-465 volts three phase Special range As per customer requirements Output voltage 220/230/240 V AC in single phase 380/400/415 V AC in three phase System Unbalanced/balanced type Connection Star/Delta or Star/Star Output Voltage regulation (+/-) 1% from no load to full load Servo motor drive model -A AC Servo Synchronous Motor - Small Correction speed 35 V/sec-1 ph, 60 V/sec-3 ph Response time Above 60 milli. sec. Servo motor model-B DC servo motor Correction speed Upto 105 V/sec. Response time 10 milli sec Operating frequency 47 to 53 HZ Output waveform True reproduction of input Insulation Class "B" Short circuit percentage and period 300 % for 250 milli sec. Overload capacity 120 % for 1 minute Effect of load P.F on OP Volts Nil Waveform distortion Nil Duty Cycle 100 % continuous Ambient Upto 45c max above ambient Relative humidity upto 90% System construction As per IS:9815 Enclosure Powder coated Efficiency Better than 98% (electrical consumption saved) Environment Designed for indoor / outdoor tropical use Mounting On wheels Earthing Earthing terminals provided -
Dimensions
OIL CAPACITY L (mm) W (mm) H (mm) WEIGHT KGS 40 LTS DL 1000 400 600 100 60 LTS 970 400 650 150 100 LTS 1250 450 750 200 160 LTS 1450 750 850 450 225 LTS 1650 900 950 650 400/500 LTS ECO 1900 900 1100 850 500 LTS 1400 1200 1500 1000 700 LTS 2250 1100 1300 1200 800 LTS 2350 1100 1300 1300 900 LTS 2500 1500 1500 1500 1500 LTS 2500 2000 2000 2000 1800 LTS 2500 2000 2000 2000
